Rib (Δ 1 X 1 )
Interlock Double Jersey Open Width Circular Knitting Machine
Machine model:
YFDK
Classification:
Product Description
Machine Specification:
| Model | Cylinder Dia | Gauge | Feeder |
|---|---|---|---|
| YFDK | 26"-50" | 7G-40G | 2-2.8F/INCH |
This machine is manufactured based on the tubular double jersey circular knitting machine and equipped with open width fabric taken down with open width and rolling function. It is used in slitting tubular fabric by rolling up immediately after being knitted, which would smooth out the center crease out of the fabric on winder, and make it fully utilized.
Machine possesses 2 tracks cams for the dial and 4 tracks cams for the cylinder.You can easily and rapidly change the arrangement of cams and needles to knit rib,sandwich fabric,scuba fabric,twill,air layer fabric,interlining fabric,bourrelet,pique fabric,double jersey elastc fabric,mini jacquard fabric etc.
Open-width fabric operation unit:
1) Picking up no cog design, so there is no rib trace/ bar in cloth surface.
2) Rolling up cloth system with special design, it is easy to roll up cloth and will not
produce clear shadow.
3 )Matching stop safety equip, when cloth slitting not be serious finished, it shall be stop automatically.
4 )Controlling the tension of the fabric to prolong the needles service
Product Function and Advantages:
■ Since the cams are manufactured according to some special techniques and edge of tracks has undergone a transition angle treatment,the useful life of needles and sinkers as well as the running speed of the product has been greatly increased
■ Made of high-density gray iron alloy,the cam boxes have received aging treatment for a fixed time ,so as to effectively prevent possible expansion or contraction caused by the low and high temperature during running,and to control the knitting accuracy of the machine parts.
■ Besides the frame that has received a natural aging treatment,and the interlock or rib knitting machine uses the oil immersed gear meshing drive model with good stability and slight noise.
■ Advance computer control system is applied to automatically monitor and control each operating parameter,such as regularly spraying oil in fixed quantity,dust removing ,needle breaking detection,automatic stop when the fabric is broken or it arrives the rated output,etc
Interlock (Δ 2X4 )

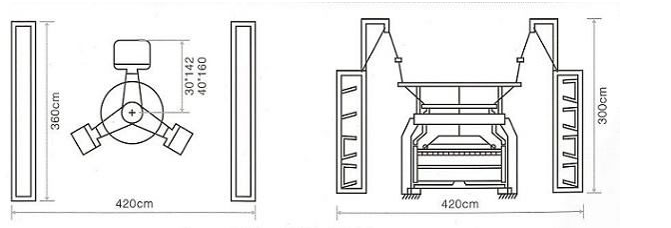

Machine Dimension:
Our plant is equipped with a lot of advanced production equipment, such as the CNC vertical lathe, high-speed milling machines, CNC machining center and so on. There devices are imported from Japan & Germany and we gradually expand our plant, now our annual output can reach more than 2000 sets, before the shipment , machines will be adjusted and inspected by our technicians, so as to make sure that all machines are qualified.
